Mounting Hardware for Pantron Infrared Photoelectric Sensors

Manufacturer: Pantron Instruments, GmbH
Category: Accessories

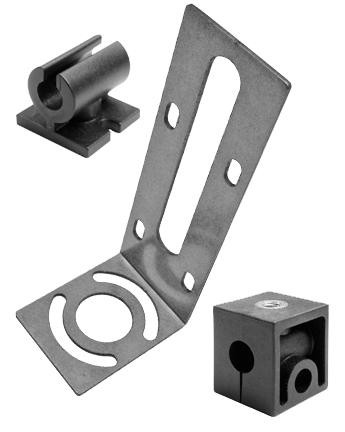

Sensor mounting brackets for easy mounting and alignment of Pantron photoelectric sensors. The types ISH1 and ISH2 have a M6 central fixing and are designed to hold the P10 series photo eyes. Type ISH10 has a bore of Ø 16 mm and is also designed for the P10 series. The "L" bracket allows up to four M12 photo eyes to be mounted side-by-side.

Features and Specifications

For easy mounting and alignment of Pantron photoelectric sensors
Mounting solutions for P10 / TLP / M12 / CLN / CLV series

Downloads and Info

Datasheets (PDF)

Accessories

Standard Photoelectric Sensors
SlimLine Photoelectric Sensors

Picture	Part number	Description
	BKT-12mm	12mm "L" shaped bracket for mounting threaded photo eyes
	ISH 1	Screw clamp for 10mm transmitter / receiver M6 threaded bushing for mounting
	ISH 2	Mounting clip for 10mm transmitter / receiver
	ISH 10	Strain relief with 1/2" thread for mounting 10mm transmitter / receiver
